CP Series · Remote Power Panels

CP Series Remote Power Panels, 225–600A

High-density branch-circuit distribution in a compact 24″-wide cabinet, with InSight BCMS branch-circuit monitoring built in. Three ratings on one platform, engineered for seamless white-space integration and shipped in four weeks.

Get a Quote

The line-up

Three ratings, one platform

CP-225, CP-400, and CP-600 share an identical footprint, monitoring system, and feeder layout — so you size to the load, not the cabinet.

CP-225

225A

Compact branch distribution for high-density white space and edge deployments where feeder capacity is modest but circuit count is high.

CP-400

400A

The workhorse rating for most critical-facility deployments — the right balance of capacity and circuit density per row.

CP-600

600A

Maximum capacity in the same 24″ × 12″ × 90″ footprint, for the highest-density racks and busways.

Features & Benefits

Engineered for the white space

Every CP Series panel is built to your single-line and breaker schedule on a platform proven in mission-critical facilities. The result is dense, monitored distribution that drops cleanly into the room with no surprises at commissioning.

225A, 400A, 600A ratings — rated 480V max
14 kAIC SCCR @ 480VAC; 65 kAIC optional
(84) single-pole branch-circuit positions
Branch breakers 20A–150A; (28) 30A/3-pole and (28) 50A/3-pole optional
Main input breaker up to 600A, 100% rated, LSI
Top & bottom cable entry for flexible feeder routing
Seismic tested · indoor UL Type 1 enclosure
Optional surge protection up to 100kA

Request a Quote

Built to fit your room

Three mounting configurations

The same platform installs three ways, so the panel adapts to the floor plan instead of forcing a redesign.

◫

Free-Standing

The standard 24″ × 12″ × 90″ floor-mount cabinet, with full front access and top or bottom cable entry.

▤

Wall-Mounted

Space-saving install for the same electrical platform where floor space is at a premium along the perimeter.

◫◫

Back-to-Back

Maximum density — two panels sharing a common footprint to double circuit count in a single row position.

InSight BCMS

Branch-circuit visibility, built in

Every CP Series panel ships with an integrated Branch Circuit Monitoring System and a local touchscreen — real-time current, voltage, energy, and power-quality data across main and branch circuits, at ±0.5% true-RMS accuracy. Metering modules are DIN-rail mounted, modular, and scalable, so you monitor only the circuits you need today and add coverage later without re-engineering the panel.

Integrated branch-circuit metering with local touchscreen
±0.5% true-RMS current, voltage, energy & power quality
DIN-rail modular hardware — scalable per circuit
Doors stay closed during monitoring and inspection

Explore InSight BCMS →

Specifications

CP Series at a glance

Core electrical and mechanical specifications. Full submittal-grade documentation is available on request.

Models	CP-225 (225A) · CP-400 (400A) · CP-600 (600A)
Voltage	415Y/240 VAC standard; 480Y/277 & 208Y/120 VAC optional
System	3-phase Wye, 4-wire, 60 Hz; 480V max
Main Breaker	Up to 600A, 100% rated, LSI
SCCR	14 kAIC @ 480VAC standard; 65 kAIC optional
Branch Positions	(84) single-pole positions
Branch Breakers	20A–150A; (28) 30A/3-pole and (28) 50A/3-pole optional
Monitoring	InSight BCMS — integrated, ±0.5% true-RMS, local touchscreen
Configurations	Free-standing, wall-mounted, back-to-back
Enclosure	Indoor UL Type 1; seismic tested
Dimensions	24″ W × 12″ D × 90″ H
Cable Entry	Top & bottom
Options	IR inspection windows · surge protection up to 100kA
Certifications	UL listed · Siemens Approved OEM · Made in the USA · BABA-compliant
Lead Time	4-week delivery — in stock now

View Full Specifications

Where it runs

Built for mission-critical loads

The CP Series serves the facilities that cannot tolerate downtime — wherever dense, monitored distribution matters.

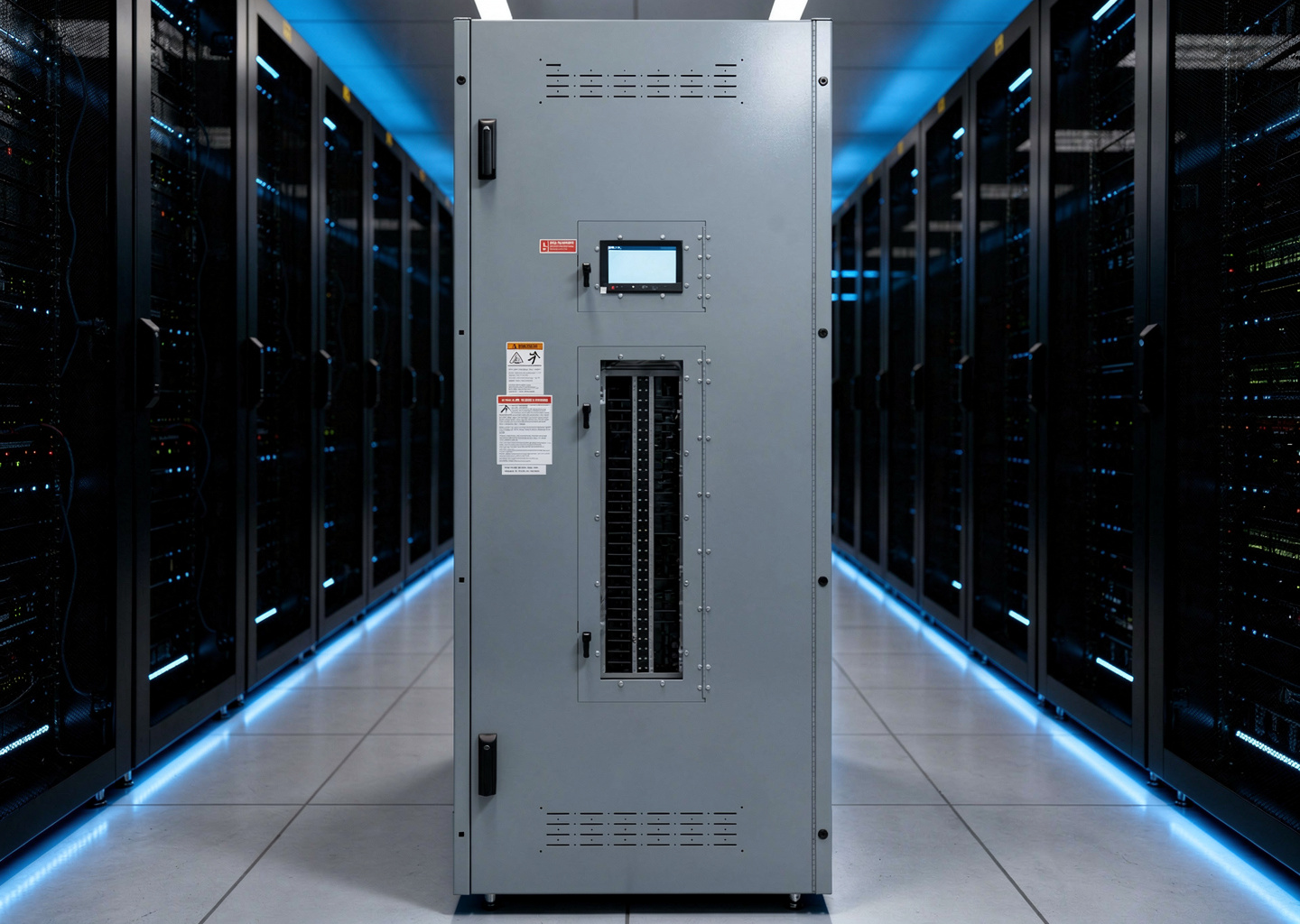

Data Centers

Compact white-space distribution with branch monitoring standard for rack-level visibility.

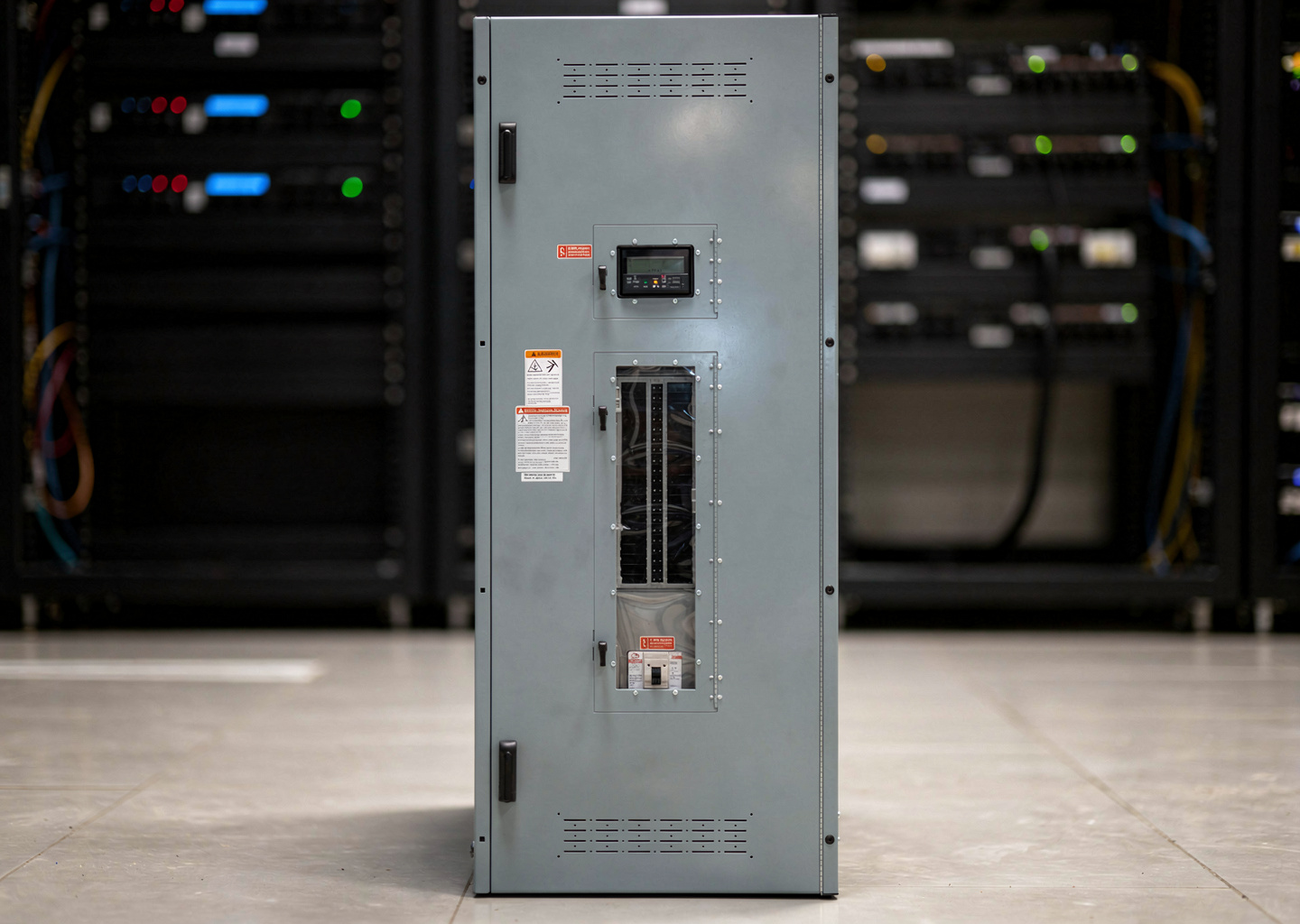

Telecom

High-circuit-count panels for central offices and network facilities in a tight footprint.

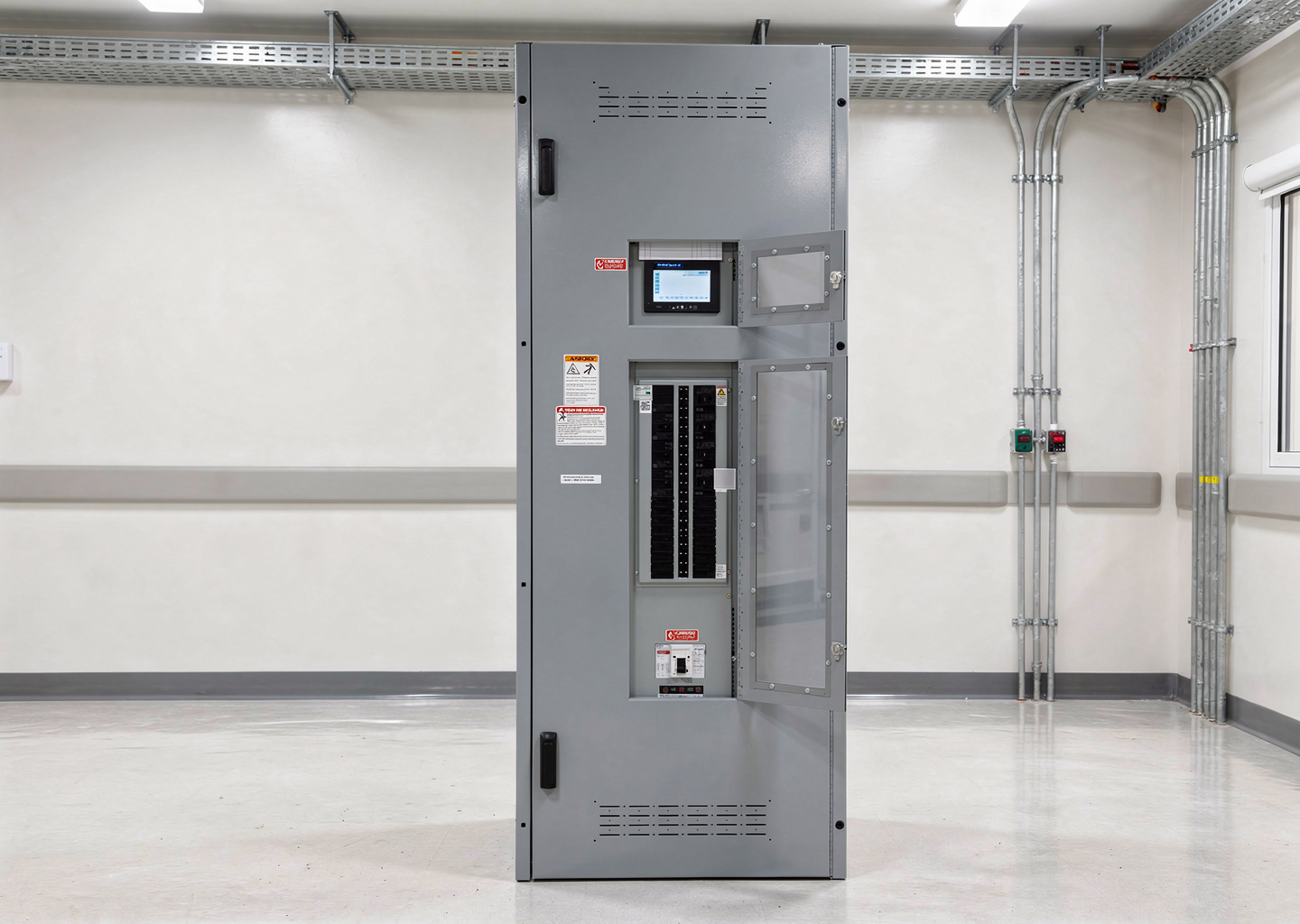

Healthcare

Monitored, code-conscious distribution for facilities that run around the clock.

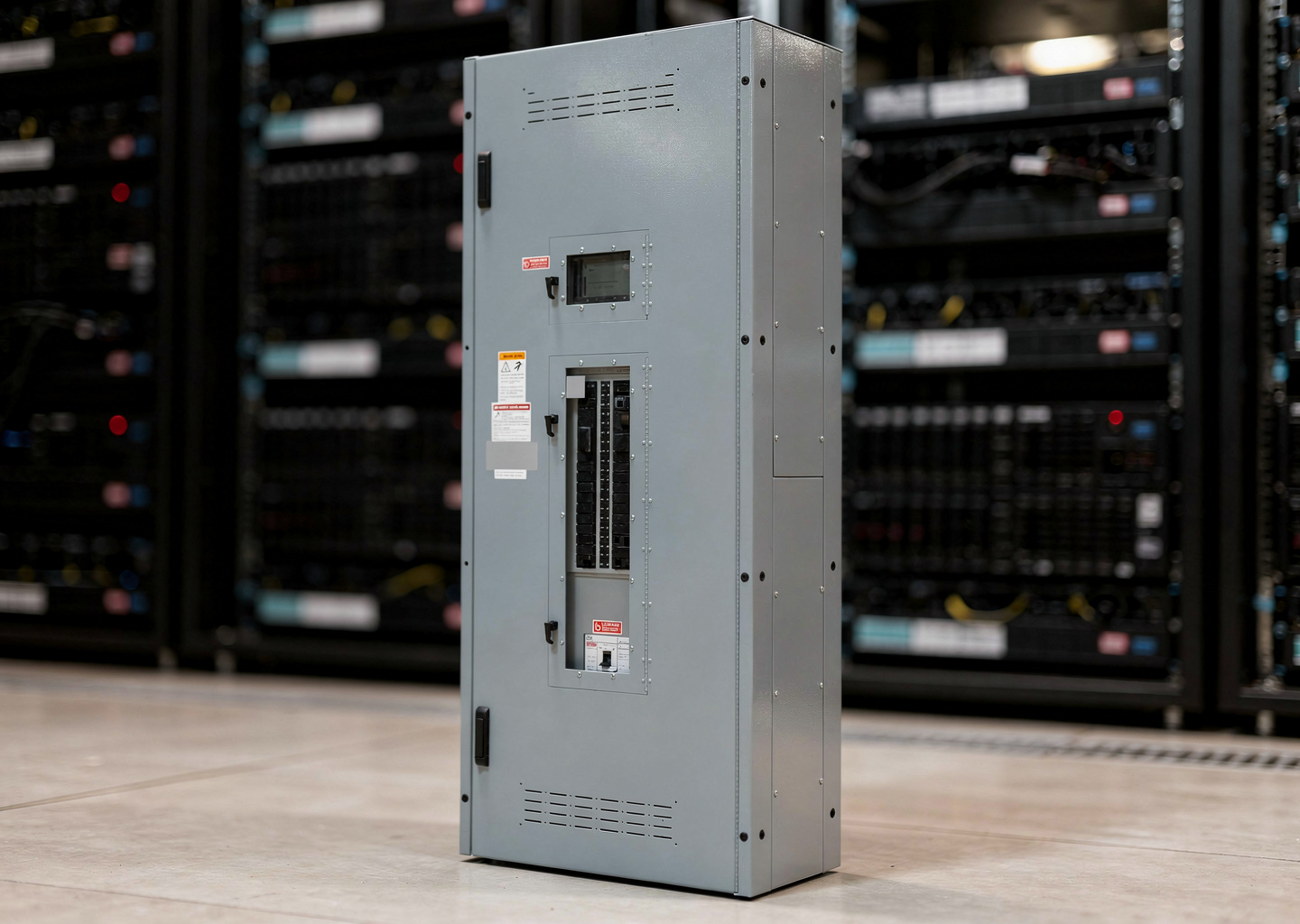

Crypto Mining

Maximum-density 600A distribution for high-load compute environments.

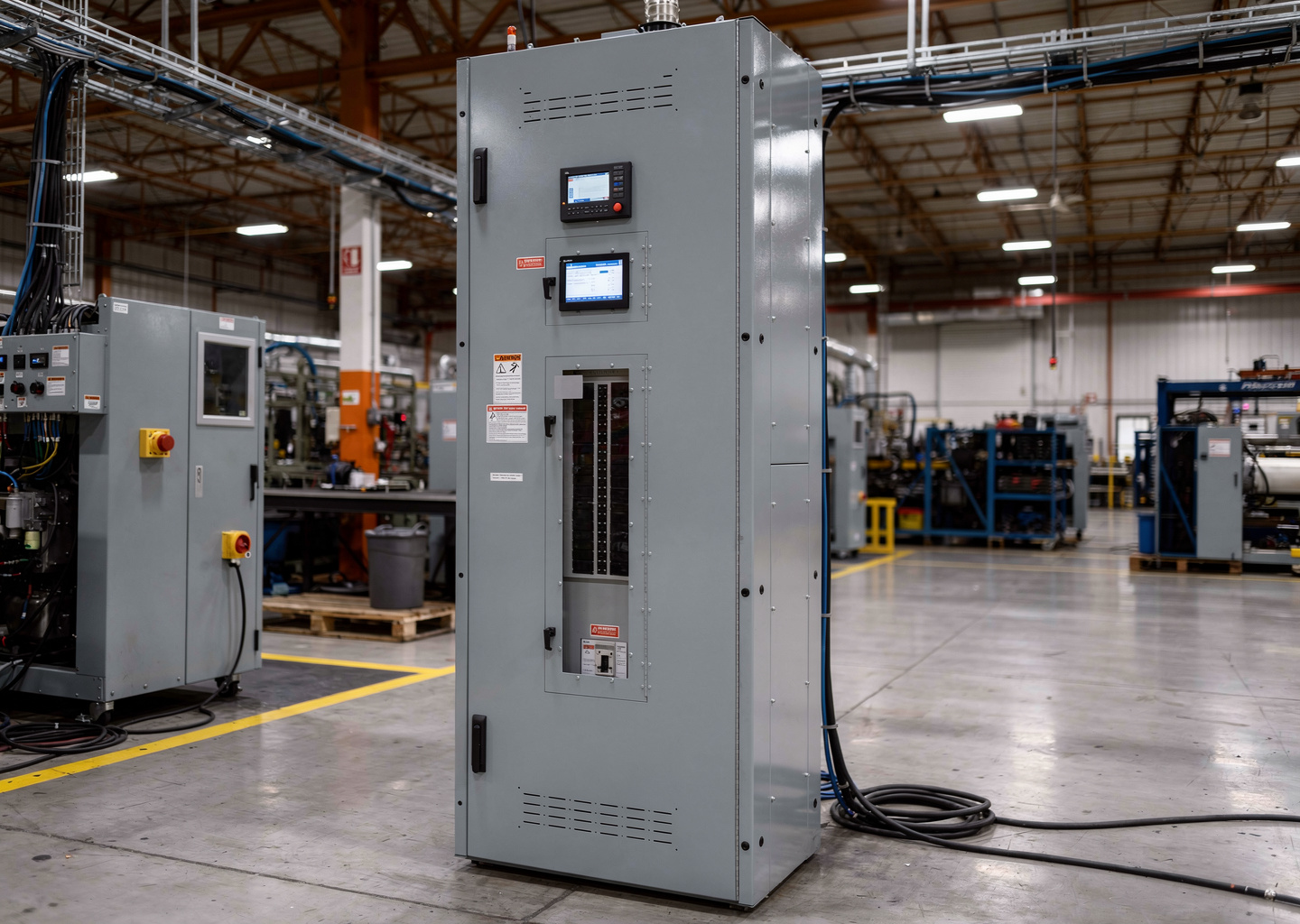

Industrial & Commercial

Rugged, seismic-tested panels for plant floors and commercial buildings.

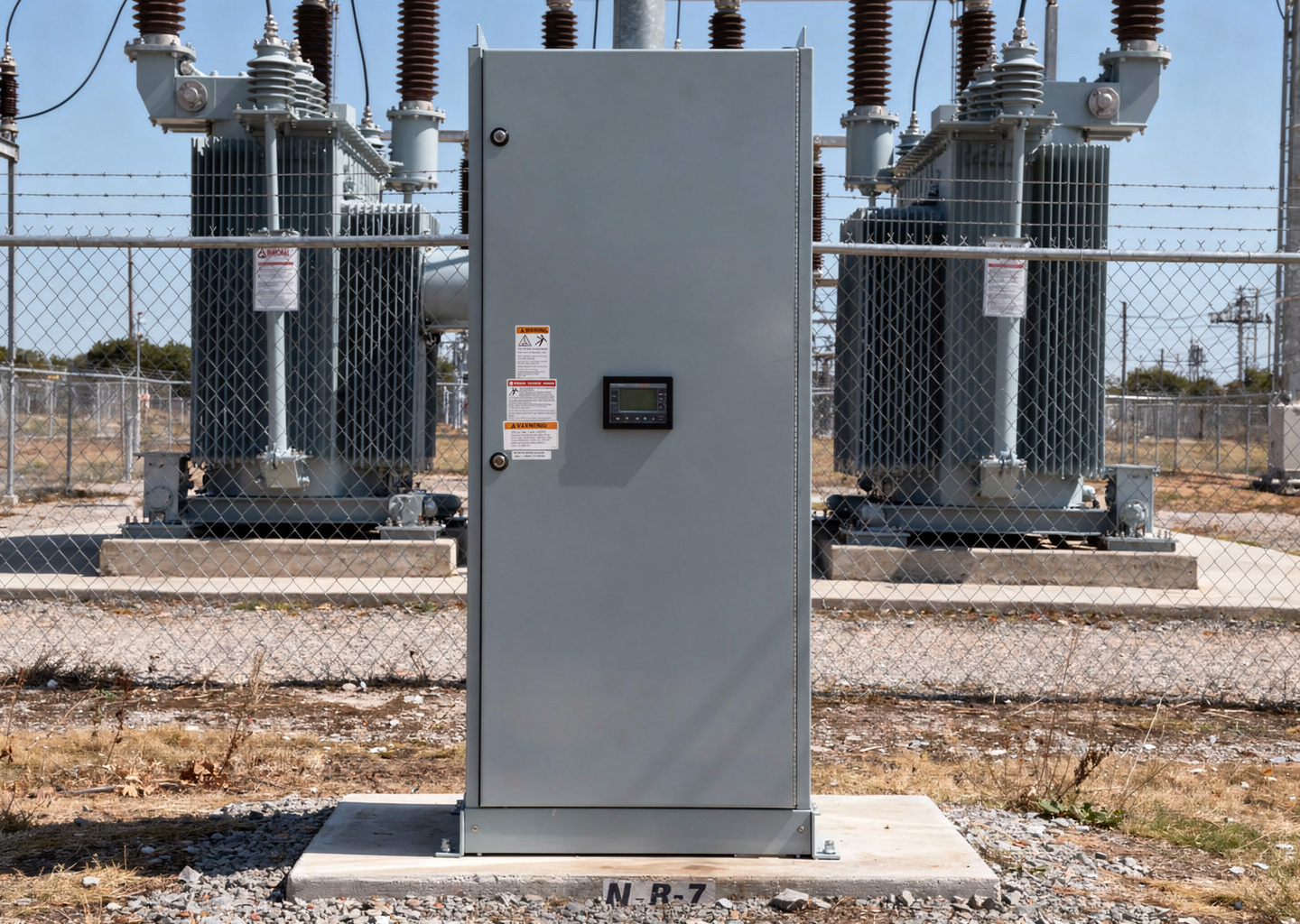

Utilities

Reliable branch distribution where availability and metering accuracy are non-negotiable.

See All Applications →

Why the CP Series

Engineered, not configured from a catalog

⚙

Built to Spec

Every panel is manufactured to your single-line and breaker schedule — no compromises to fit a stock SKU.

⏱

4-Week Turnaround

In stock now, with delivery guaranteed in four weeks anywhere in the USA.

✓

UL Listed

UL listed, seismic tested, and indoor UL Type 1 — certification is the floor, not the headline.

⚑

Premium Components

Siemens Approved OEM build with 100%-rated mains and LSI trip units throughout.

▯

Scalable & Configurable

Three ratings, three mounting styles, and modular monitoring that scales per circuit.

☎

Engineering Support

Talk to engineers who size, submit, and support the panel from quote through commissioning.

Credentials

Certified, compliant, and made in the USA

✓

UL Listed

Certified performance and safety.

★

BABA-Compliant

Qualifies federally funded work.

⚑

USA Manufactured

Siemens Approved OEM.

⏱

4-Week Delivery

Guaranteed anywhere in the USA.

Tell us your load — we'll spec the right panel

Send us your single-line or breaker schedule and our engineers will return a sized CP Series configuration with a four-week delivery date.

Get a Quote
